Wheel-hub bearing cage designs
Two ring-shaped cage designs show open and closed ball pockets for wheel-hub bearings. Compare pocket geometry, the ring profile and assembly clearances when defining your version.
Discuss your component
More structures in this family
Open-pocket ring

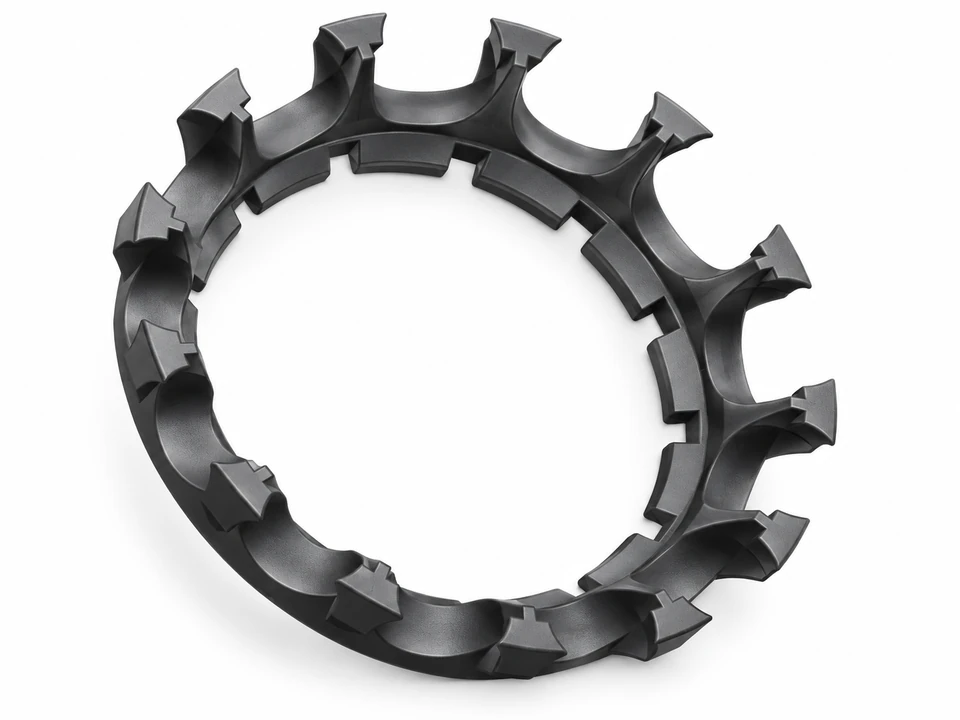

Product rendering — open ball pockets and the bridges between them.
Design details
Product renderings illustrate the documented design. Dimensions, tolerances, material grade and validation conditions are specified for each project.
| Property | Value / description |
|---|---|
| Bearing application | Wheel-hub bearings |
| Pocket arrangements | Open pockets / closed circular pockets |
Start the review with specific requirements.
Provide the part drawing and revision, material requirements, project quantities and critical inspection points. For metal inserts, specify responsibility for conductor or insert supply.
- Geometry & interfaces
- Mating, fixing and assembly interfaces
- Material & molding
- Material requirements, insert boundaries and tooling scope
- Inspection & delivery
- Critical checks, quantities and project schedule
Start with your drawing and requirements.
Share your drawing revision, quantities and key requirements so we can discuss the project.
