Plastic ball bearing cages with axial bars
Ball-bearing cage structures with end rings and axial bars. Review the ball spacing, pocket shape and assembly envelope with the drawing when defining the mold and molded part.
Discuss your component
More structures in this family

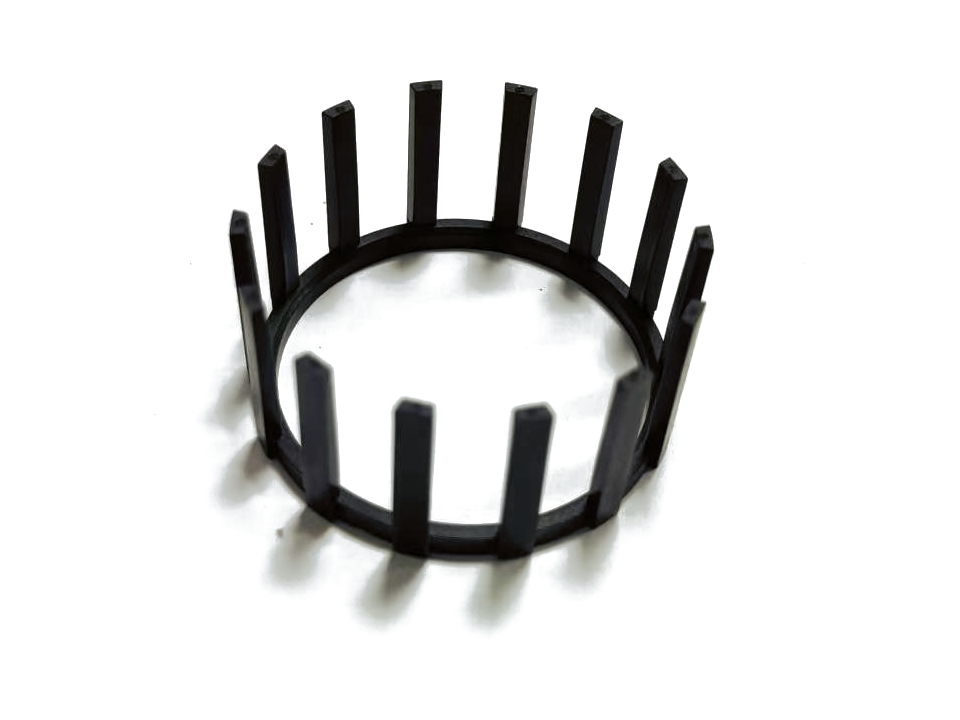

Cage viewed from the opposite side
This view shows the bar ends, the ring and the spaces between the bars.

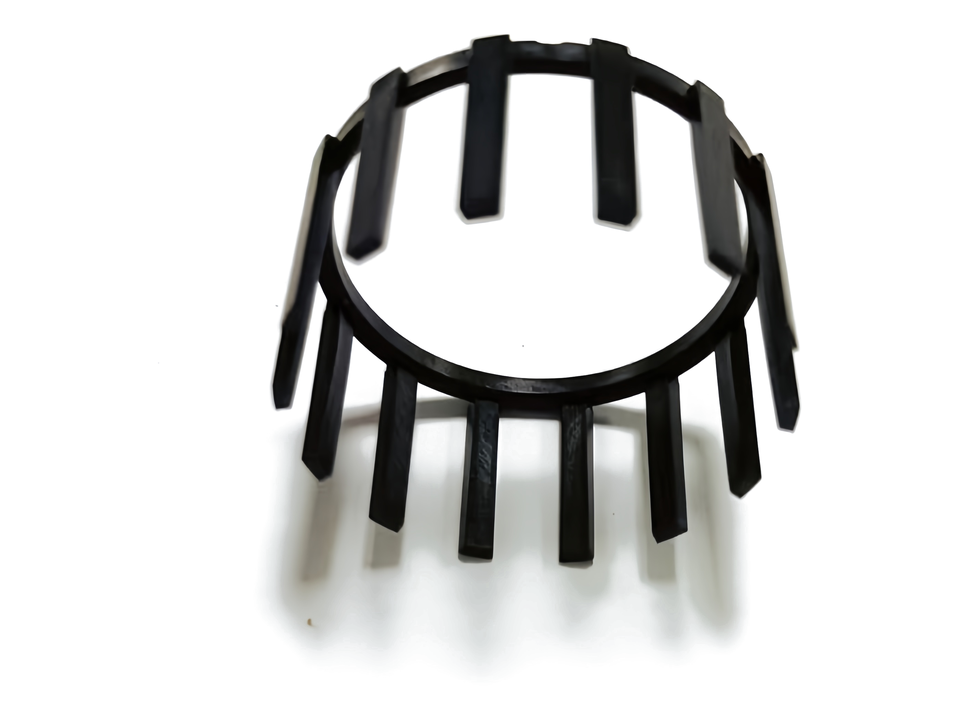

End ring and axial bars
An angled view shows how the axial bars join the end ring.
Component details & example specifications
Photographs illustrate the product family. Documented variants are listed separately below. Tolerances, materials and acceptance criteria are reviewed against your drawings.
| Property | Value / description |
|---|---|
| Weight | 0.7 g |
| Dimensions | 22 × 22 × 10 mm |
| Ball-bearing spacing | 1.2 mm |
Start the review with specific requirements.
Provide the part drawing and revision, material requirements, project quantities and critical inspection points. For metal inserts, specify responsibility for conductor or insert supply.
- Geometry & interfaces
- Mating, fixing and assembly interfaces
- Material & molding
- Material requirements, insert boundaries and tooling scope
- Inspection & delivery
- Critical checks, quantities and project schedule
Start with your drawing and requirements.
Share your drawing revision, quantities and key requirements so we can discuss the project.
