Notebook & computer fan bases
Metal-and-plastic bases for notebook and computer cooling fans, with hub support and mounting features in several base outlines.
Discuss your component
More structures in this family

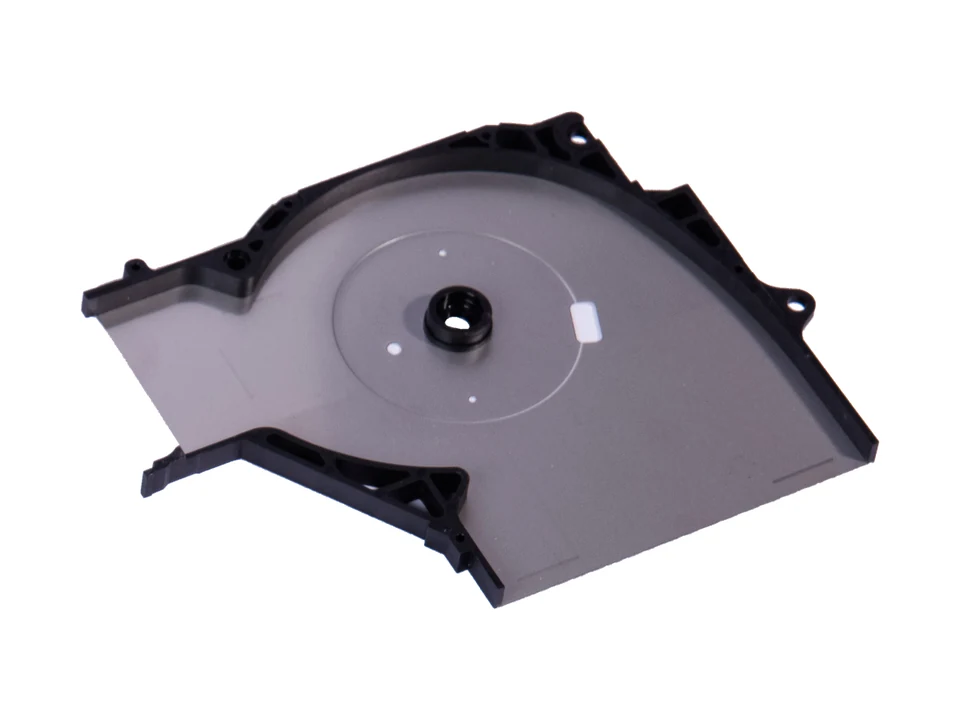

Alternative fan base outline
Cooling fan base sample. Compare the plate outline, central support and mounting features.

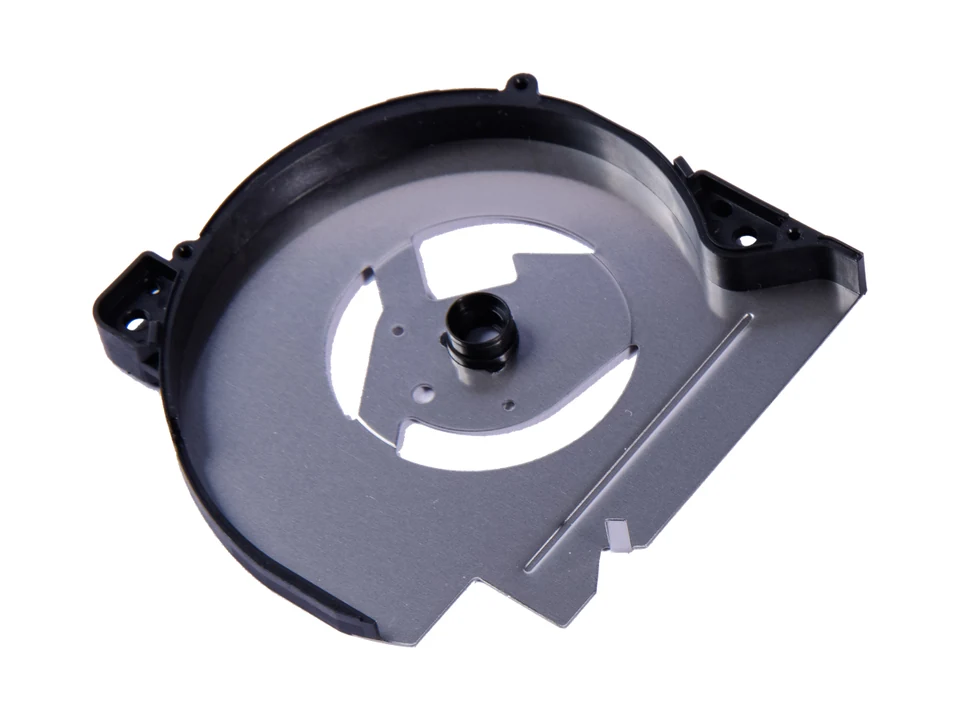

Fan base with large cutouts
Three large cutouts in the base plate, with a central support and mounting features around the perimeter.

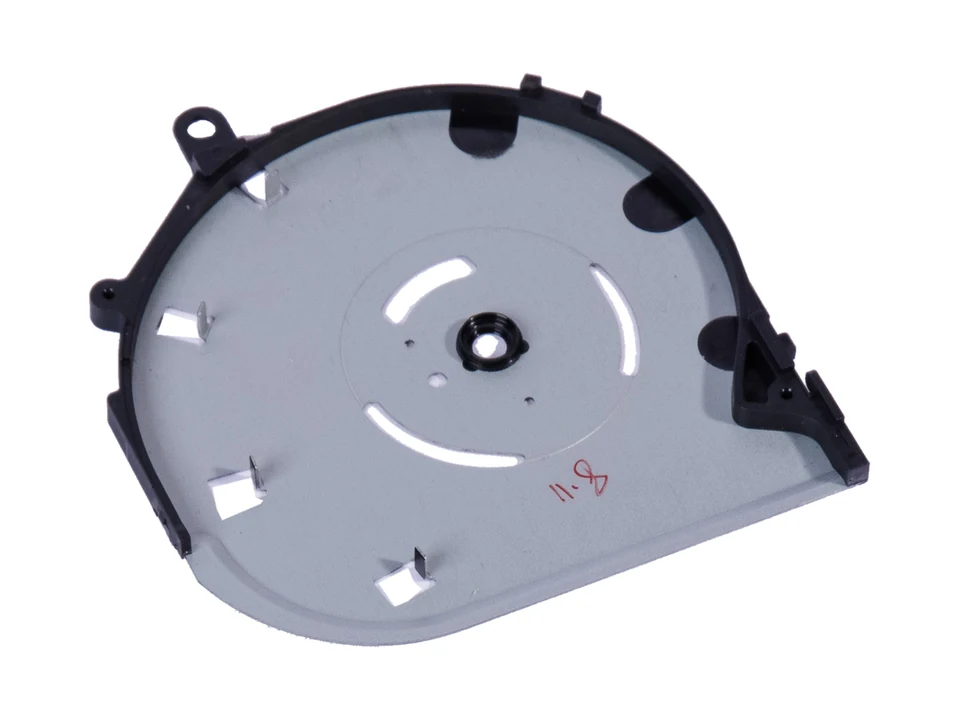

Fan base with folded tabs
A base with four folded tabs, three curved openings and a central support.
Component details & example specifications
Photographs illustrate the product family. Documented variants are listed separately below. Tolerances, materials and acceptance criteria are reviewed against your drawings.
| Property | Value / description |
|---|---|
| Dimensions | 89 × 77 × 1.6 mm |
| Weight | 1.4 g |
| Material | PPS+metal inserts |
| Property | Value / description |
|---|---|
| Example dimensions | 62 × 58 × 6.5 mm |
| Example material | PBT + 30% GF + SUS304 |
| Example thickness | 0.30 mm |
| Example flatness | 0.10 mm |
Start the review with specific requirements.
Provide the part drawing and revision, material requirements, project quantities and critical inspection points. For metal inserts, specify responsibility for conductor or insert supply.
- Geometry & interfaces
- Mating, fixing and assembly interfaces
- Material & molding
- Material requirements, insert boundaries and tooling scope
- Inspection & delivery
- Critical checks, quantities and project schedule
Component directions in this family
Start with your drawing and requirements.
Share your drawing revision, quantities and key requirements so we can discuss the project.
